항목 | 규격 | 항목 | 규격 | ||

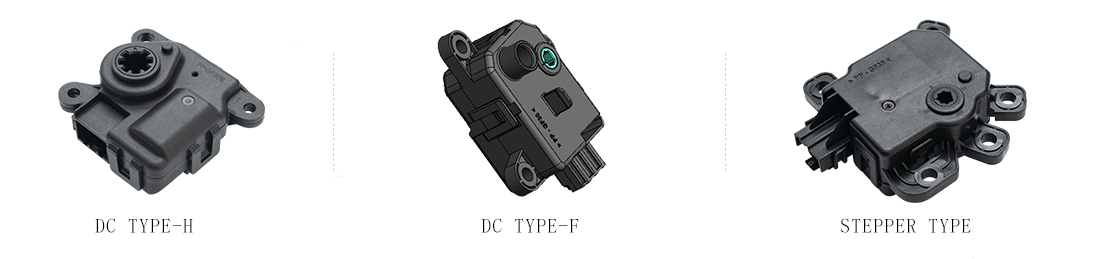

| DC Motor Type | Stepping Motor Type | ||||
Rated Voltage | 12 V | Voltage Range | 9~16V | ||
Voltage Range | 9V~16V | Swing Speed(RPM) | Speed 0 | 6±1 | |
Operating Temperature Range | -40~85℃cm | Speed 1 | 15±1 | ||
Starting Voltage | Max 6.7V | Pull Out Torque(Ncm) | Speed 0 | Min 25 | |
Load Torque(Ncm) | 4 | Speed 1 | Min 15 | ||
Load Current(mA) | 17±3 | Pull In Torque(Ncm) | Speed 0 | Min 20 | |
Swing Speed(RPM) | Max 60 | Speed 1 | Min 9 | ||
Stall Current(mA) | Max 150 | Operating Current(mA) | Speed 0 | Min 200 | |
Noise at 10cm(dBA) | Max 40 | Speed 1 | Min 100 | ||
| PTM Linearity | ±2.5% | Operating Noise(sones) | Speed | Max 2.5 | |
| Weight(g) | Max 65 | Speed 1 | |||
| * 고객사 요구 사양에 따라 개발 | Weight(g) | ≤ 50g | |||
LIN Ver | LIN 2.2A | Only for LIN Type | |||
Baud rate | 19200 | ||||
Function | Self-learning function | ||||
* 고객사 요구 사양에 따라 개발 | |||||
