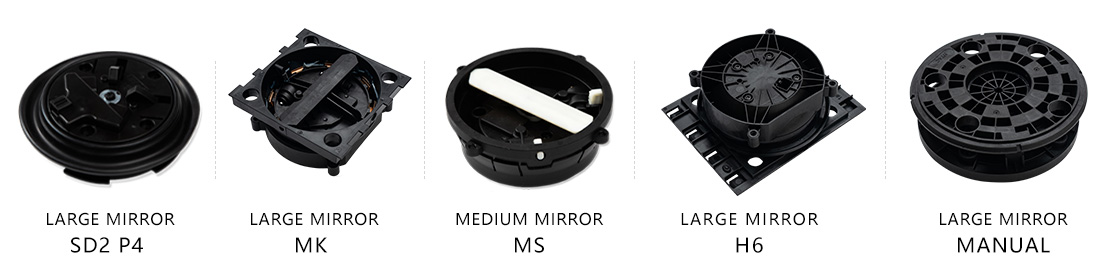

Adjusting Side mirror angle / global patented source technology
Opening & closing Charge Port Door for electric vehicle
Adjusting HVAC(Heating, Ventilating, Air Conditioning)
Adjusting Air Vent operating direction
The car door lock actuator is a key component in the car door lock system, mainly responsible for controlling the opening and closing of the door lock.
Control the flow and direction of cooling water, regulate the temperature of the engine and heating system
Adjusting Headlamp angle
Adjust the high beam and low beam for Headlamp
Adjust the high beam and low beam for Headlamp
ITEM | SPEC | ||
| ELEC | Manual | ||
Rated Voltage | 12V | 24V | - |
Operating Voltage | 9~16VDC | 16~32VDC | - |
Operating Current(mA) | Max 500 | Max 250 | - |
Cut-off Current(mA) | Max 1000 | Max 500 | - |
Operating Speed(°/sec) | 3.5~7 | 3.5~7° | - |
Operating Angle | 25°±2° | 25°±2° | MIN28° |
Manual Torque(Nm） | MIN3.0 | Min3.0 | 1 ~ 5Nm |
Electric Torque(Nm) | MIN1.5 | Min1.5 | - |
Noise at 50cm(dBA) | MAX.58 | Max.58 | - |
* Customized design | |||
